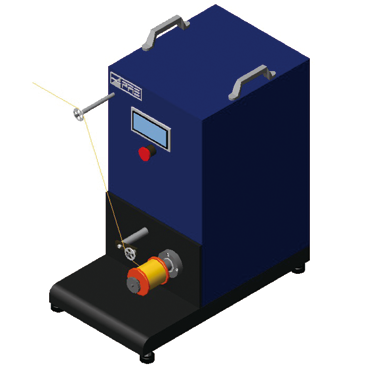

Guide Traverse Type Winding Machine
Features
- The guide traverse method has been employed.
- Compact design allows the machine to be placed on the table.
Applications
- Winding Machine for Annealing process
- Winding Machine for Rewinding process
| Type | WEGT-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ100mm / Max. Overall Width:100mm |
| Traverse Pitch | ~1mm/rev |
| Traverse Width | ~100mm |
| Speed | ~500m/min(MAX3000rpm) |
| Dimensions | L670 x W400 x H700 m *Safety Cover Included |

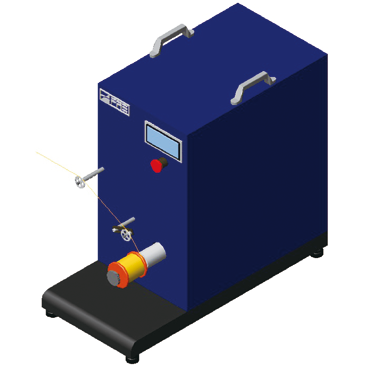

Bobbin Traverse Type Winding Machine
Features
- The bobbin traverse method has been employed.
- Compact design allows the machine to be placed on the table.
Applications
- Winding Machine for Annealing process
- Winding Machine for Rewinding process
| Type | WEBT-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ100mm / Max. Overall Width:100mm |
| Traverse Pitch | ~1mm/rev |
| Traverse Width | ~100mm |
| Speed | ~500m/min(MAX3000rpm) |
| Dimensions | L770 x W400 x H700 mm *Safety Cover Included |

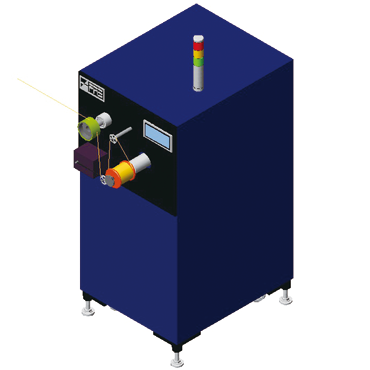

Capstan-Dancer Type Winding Machine
(For Thin Line)
Features
- Drive roll and dancer roll are fitted in the upper stream of the process.
Winding tension setup is available independently from line tension. - The bobbin traverse method has been employed.
- Auto-traverse function is available by option.
Applications
- Winding Machine for Annealing process
- Winding Machine for Rewinding process
| Type | WCBT-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ160mm / Max. Overall Width:176mm |
| Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Traverse Pitch | ~1mm/rev |
| Traverse Width | ~170mm |
| Speed | ~1000m/min(MAX5500rpm) |
| Dimensions | L900 x W500 x H1530 mm *Safety Cover Included |
*Select tension according to intended applications.

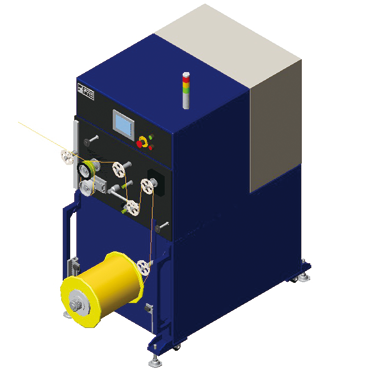

Capstan-Dancer Type Winding Machine
(For Heavy Line)
Features
- Drive roll and dancer roll are fitted in the upper stream of the process.
Winding tension setup is available independently from line tension. - The bobbin traverse method has been employed.
- Suitable for heavyweight spools or for winding a thick wire.
Applications
- Winding Machine for Truing process
- Winding Machine for Plating process
| Type | WCBH-01H |
|---|---|
| Wire Materials | Cu, Stainless steel, Piano Wire, the other metal wires |
| Wire Diameter | φ0.05mm~φ0.60mm |
| Spool Size | Max. Flange Diameter:φ315mm / Max. Overall Width:344mm |
| Tension | 50~1000cN / 50~2000cN |
| Traverse Pitch | ~5mm/rev |
| Traverse Width | ~380mm |
| Speed | ~300m/min(MAX650rpm) |
| Dimensions | L1600 x W750 x H1780 mm *Safety Cover Included |
*Select tension according to intended applications.

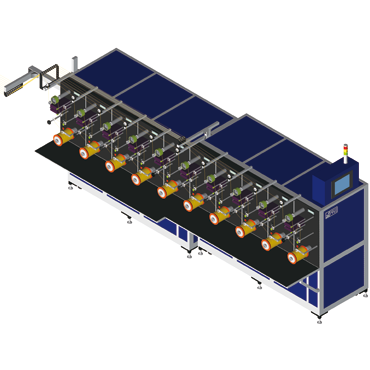

Multi-head Type Winding Machine (10 heads Type)
Features
- Speed, pitch, and tension may be set up separately for each line
and managed collectively on the touch panel directly. - The bobbin traverse system does not deform materials excessively.
Applications
- Winding Machine for Annealing process
| Type | WCBT-10H |
|---|---|
| Wire Materials | Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ130mm / Max. Overall Width:176mm |
| Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Traverse Pitch | ~1mm/rev |
| Traverse Width | ~170mm |
| Speed | ~300m/min(MAX2700rpm) |
| Dimensions | L1420 x W 4150 x H1940 mm *Safety Cover Included |
*Select tension according to intended applications.
