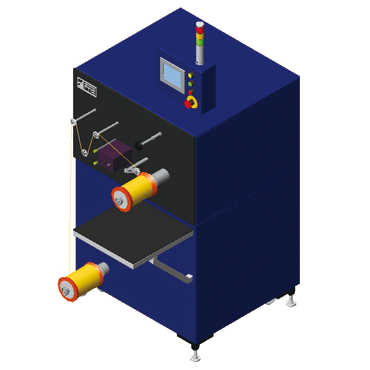

Single Dancer Type Rewinding Machine
Features
- Compatible with ultra-low tension (0.5 cN at a minimum)
- Compatible with high speeds (up to 1000 m/min)
- Unwinding and winding tensions are applied by a dancer.
Applications
- Rewinding Machine for Shipping spools
- Rewinding Machine for Inspections
(requires a tester to be installed by customization)
| Type | RSBT-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ160mm / Max. Overall Width:176mm |
| Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Traverse Pitch | ~1mm/rev |
| Traverse Width | ~170mm |
| Speed | ~1000m/min(MAX5500rpm) |
| Dimensions | L1000 x W800 x H1780 mm *Safety Cover Included |
*Select tension according to intended applications.

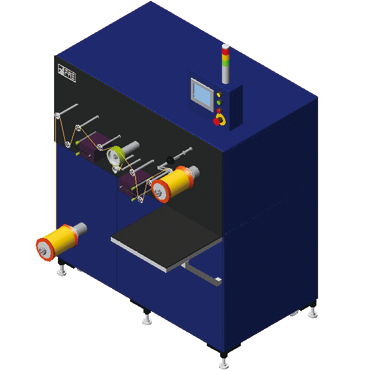

Twin Dancer Type Rewinding Machine
Features
- Compatible with ultra-low tension (0.5 cN at a minimum)
- Compatible with high speeds (up to 1000 m/min)
- Rewinding and winding tensions may be set up separately.
Applications
- Rewinding Machine for Shipping spools
- Rewinding Machine for Inspections
(requires a tester to be installed by customization)
| Type | RTBT-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ160mm / Max. Overall Width:176mm |
| Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Traverse Pitch | ~1mm/rev |
| Traverse Width | ~170mm |
| Speed | ~1000m/min(MAX5500rpm) |
| Dimensions | L1000 x W1200 x H1780 mm *Safety Cover Included |
*Select tension according to intended applications.

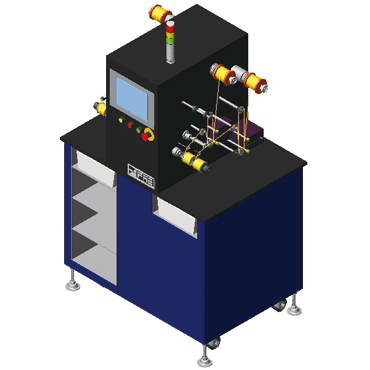

Rewinding Machine for Bonding Wire
Features
- Four spools may be rewound simultaneously.
- Tensions of 4 unwinding shafts may be set up separately as these shafts are independently controlled.
- HEPA filter (Air Filter of High Efficiency Particulate) is available by option.
Applications
- Rewinding Machine for Bonding wire
| Type | BW-RW4 | |
|---|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires | |
| Wire Diameter | φ0.01mm~ | |
| Spool Size | Unwinding | Max. Flange Diameter:φ80mm / Max. Overall Width:80mm |
| Winding | Max. Flange Diameter:φ58.5mm / Max. Overall Width:47mm | |
| Tension | 0.5~7.0cN / 1.0~15.0cN | |
| Max. Traverse Speed | ~200mm/s(MAX. Traverse pitch:10mm) | |
| Max. Traverse Width | ~50mm | |
| Speed | ~300m/min(unwinding shaft MAX 3000rpm winding shaft MAX 2000rpm) | |
| Dimensions | L700 x W990 x H1760 mm *Safety Cover Included | |
*Select tension according to intended applications.
