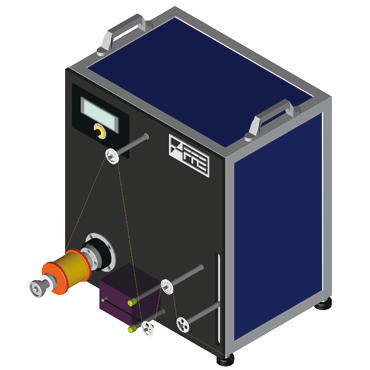

Single Dancer Type Unwinding Machine
Features
- Compatible with ultra-low tension (0.5 cN at a minimum)
- Stand-alone operation permits changes in the installation location.
- Compact design allows the machine to be placed on the table.
Applications
- Unwinding Machine for a Drawing machine
- Unwinding Machine for Annealing process
- Unwinding Machine for Rewinding process
| Type | UDST-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ100mm / Max. Overall Width:100mm |
| Unwinding Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Speed | ~500m/min(MAX3000rpm) |
| Dimensions | L600 x W500 x H600 mm *Safety Cover Included |
*Select tension according to intended applications.

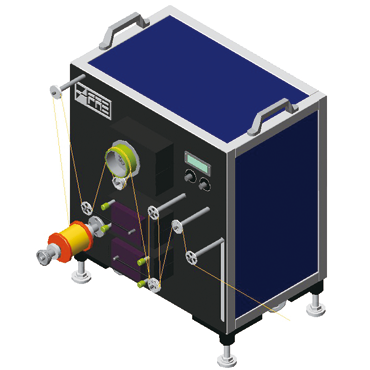

Twin Dancer Type Unwinding Machine
Features
- Compatible with ultra-low tension (0.5 cN at a minimum)
- Stand-alone operation permits changes in the installation location.
- Compact design allows the machine to be placed on the table.
- Stablizes taransmitting tension by cutting fluctuations at the capstan.
Applications
- Unwinding Machine for Annealing process
- Unwinding Machine for a Inspection machine
| Type | UDTT-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ100mm / Max. Overall Width:100mm |
| Unwinding Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Feeding Tension | 0.5~7.0cN / 2.5~17.0cN / 5.0~50.0cN |
| Speed | ~500m/min(MAX3000rpm) |
| Dimensions | L600 x W550 x H600 mm *Safety Cover Included |
*Select tension according to intended applications.

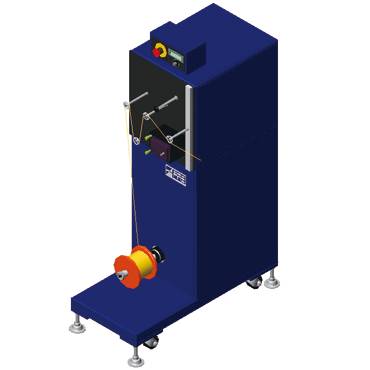

Stand Type Unwinding Machine (For Thin Line)
Features
- Compatible with ultra-low tension (0.5 cN at a minimum)
- Compatible with high speeds (up to 1000 m/min)
- Stand-alone operation permits changes in the installation location.
Applications
- Unwinding Machine for a Drawing machine
- Unwinding Machine for Annealing process
- Unwinding Machine for Rewinding process
| Type | USST-01H |
|---|---|
| Wire Materials | Au, Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ160mm / Max. Overall Width:176mm |
| Unwinding Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Speed | ~1000m/min(MAX5500rpm) |
| Dimensions | L880 x W400 x H1430 mm *Safety Cover Included |
*Select tension according to intended applications.

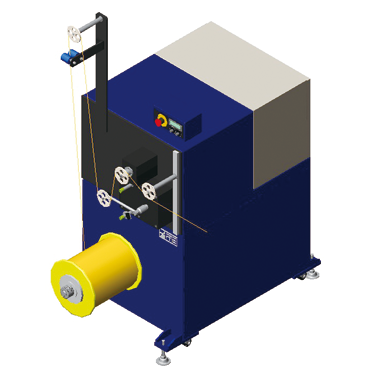

Stand Type Unwinding Machine (For Heavy Line)
Features
- Suitable for heavyweight spools or for unwinding a thick wire.
- Stand-alone operation permits changes in the installation location.
Applications
- Unwinding Machine for Plating process
- Unwinding Machine for Rewinding process
| Type | USSH-01H |
|---|---|
| Wire Materials | Stainless steel, Piano Wire, the other metal wires |
| Wire Diameter | φ0.05mm~φ0.60mm |
| Spool Size | Max. Flange Diameter:φ315mm / Max. Overall Width:344mm |
| Unwinding Tension | 50~1000cN / 50~2000cN |
| Speed | ~300m/min(MAX650rpm) |
| Dimensions | L1450 x W700 x H1850 mm (the Arm Length:550mm) *Safety Cover Included |
*Select tension according to intended applications.

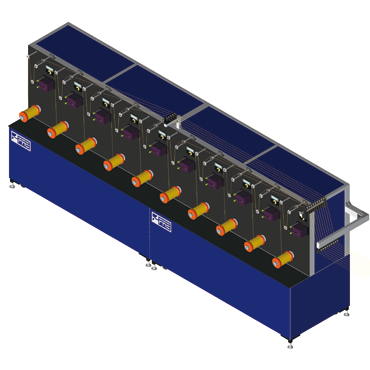

Multi-head Type Unwinding Machine (10 heads Type)
Features
- Suitable for heavyweight spools or for unwinding a thick wire.
- Stand-alone operation permits changes in the installation location.
Applications
- Unwinding Machine for Annealing process
- Unwinding Machine for Twisting process
| Type | USST-10H |
|---|---|
| Wire Materials | Cu, Stainless steel, the other ultra-fine wires |
| Wire Diameter | φ0.01mm~ |
| Spool Size | Max. Flange Diameter:φ160mm / Max. Overall Width:176mm |
| Unwinding Tension | 0.5~7.0cN / 1.0~15.0cN / 5.0~35.0cN / 10.0~100.0cN |
| Speed | ~300m/min(MAX1000rpm) |
| Dimensions | L750 x W3750 x H1600 mm |
*Select tension according to intended applications.
